| PRODUCT # | CENTER-TO-CENTER | OVERALL | WIDTH | PROJECTION | SCREW |
|---|---|---|---|---|---|
| 9745-4 | 4.000" | 5.000" | 0.750" | 0.1250" | 8.32 |
| 9745-5 | 5.000" | 6.000" | 0.750" | 0.1250" | 8.32 |
| 9745-6 | 6.000" | 7.000" | 0.750" | 0.1250" | 8.32 |
| 9745-8 | 8.000" | 9.000" | 0.750" | 0.1250" | 8.32 |
| 9745-10 | 10.000" | 11.000" | 0.750" | 0.1250" | 8.32 |
| 9745-X | Custom sizing up to 16.000" overall length | 0.750" | 0.1250" | 8.32 | |
| 9843-8 | 8.000" | 10.000" | 2.000" | 0.1875" | 1/4-20 |
| 9843-10 | 10.000" | 12.000" | 2.000" | 0.1875" | 1/4-20 |
| 9843-12 | 12.000" | 14.000" | 2.000" | 0.1875" | 1/4-20 |
| 9843-18 | 18.000" | 20.000" | 2.000" | 0.1875" | 1/4-20 |
| 9843-24 | 24.000" | 26.000" | 2.000" | 0.1875" | 1/4-20 |
| 9843-X | Custom sizing up to 30.000" overall length | 2.000" | 0.1875" | 1/4-20 | |
| 9844-8 | 8.000" | 9.000" | 1.500" | 0.1250" | 1/4-20 |
| 9844-10 | 10.000" | 11.000" | 1.500" | 0.1250" | 1/4-20 |
| 9844-X | Custom sizing up to 16.000" overall length | 1.500" | 0.1250" | 1/4-20 | |
| 9946-1.5 | 1.500" | 2.500" | 1.000" | 0.1250" | 8-32 |
| 9946-4 | 4.000" | 5.000" | 1.000" | 0.1250" | 8-32 |
| 9946-6 | 6.000" | 7.000" | 1.000" | 0.1250" | 8-32 |
| 9946-8 | 8.000" | 9.000" | 1.000" | 0.1250" | 8-32 |
| 9946-X | Custom sizing up to 16.000" overall length | 1.000" | 0.1250" | 8-32 | |
9745, 9843, 9844 & 9946 Backplate Series

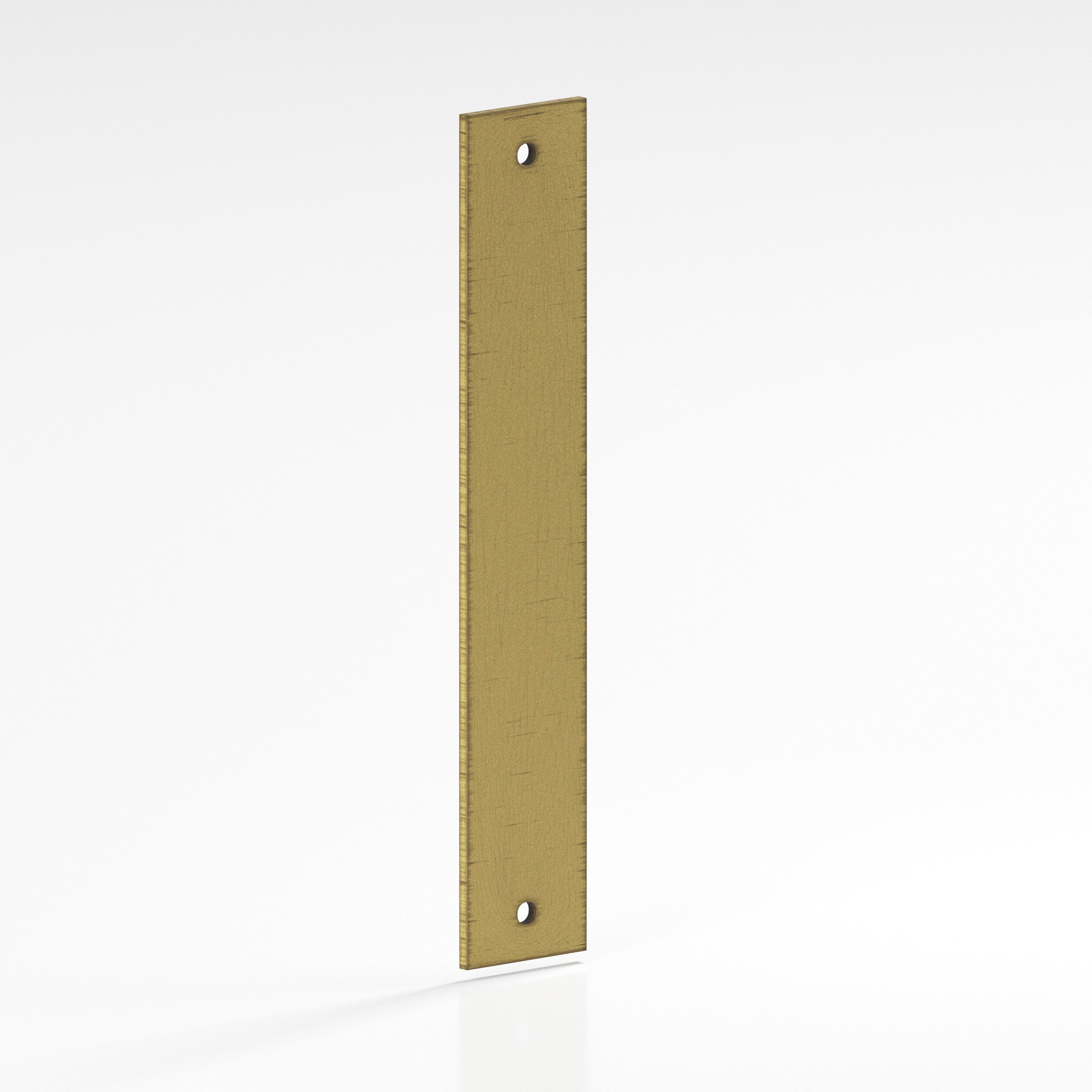

Backplate shown in Satin Brass, (4)

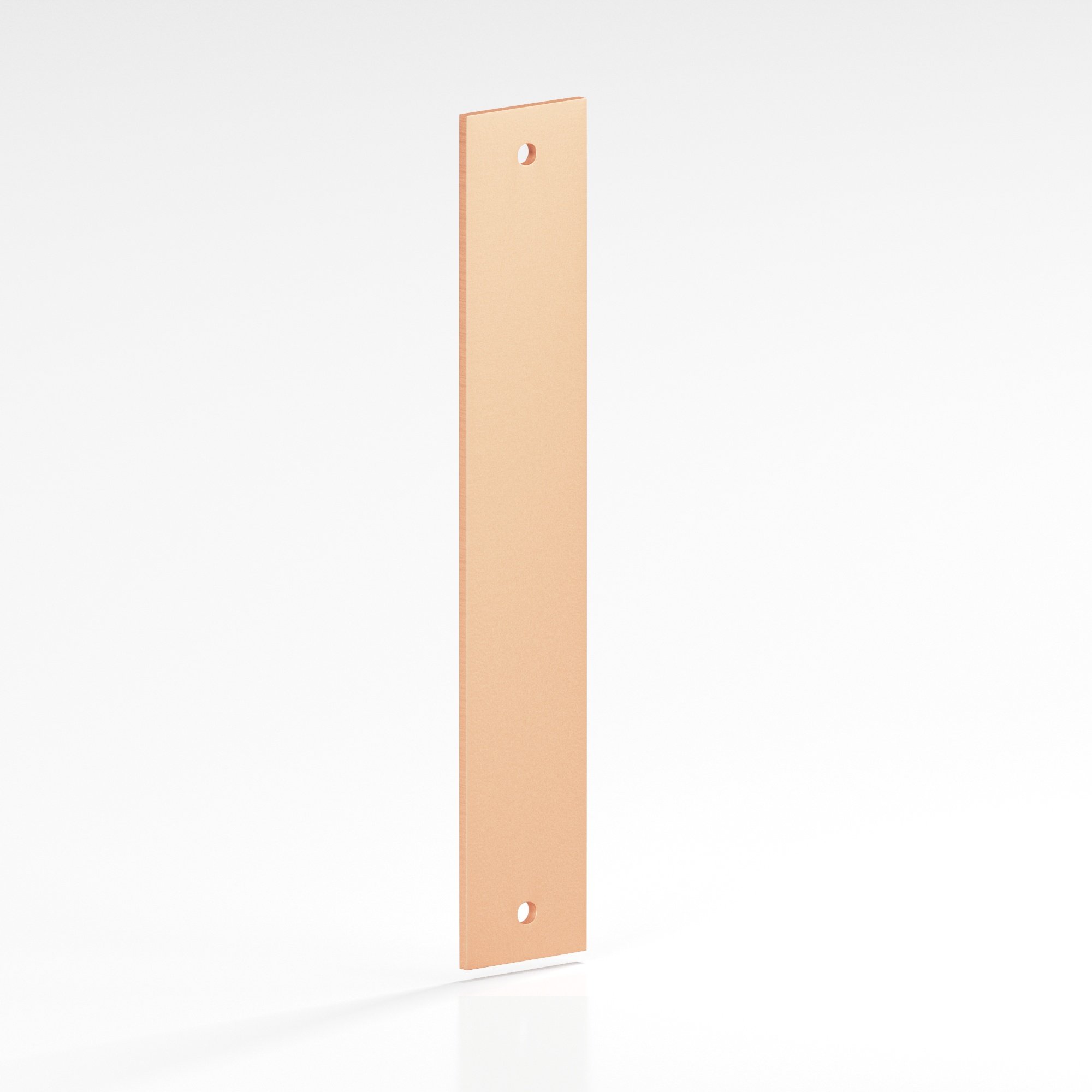

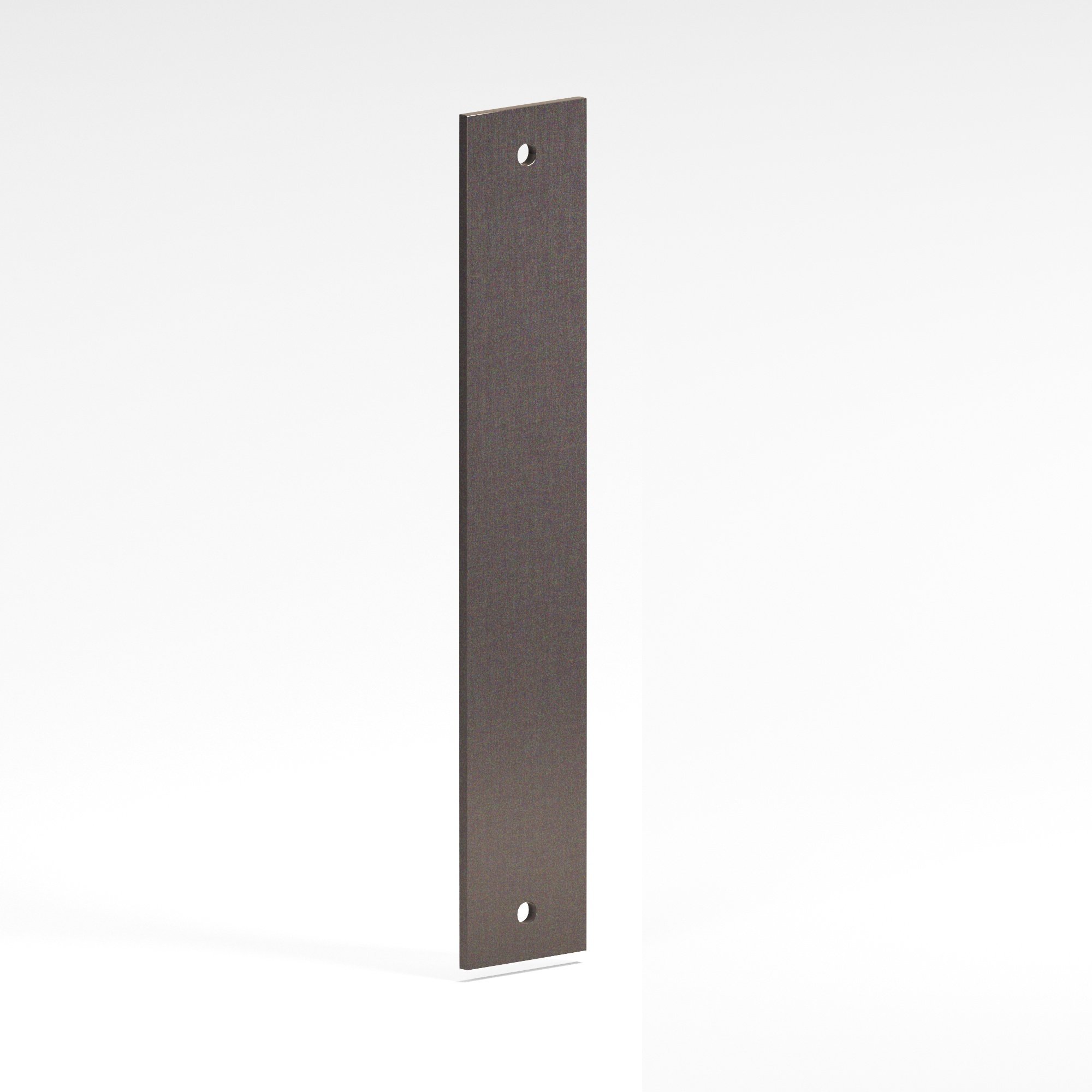

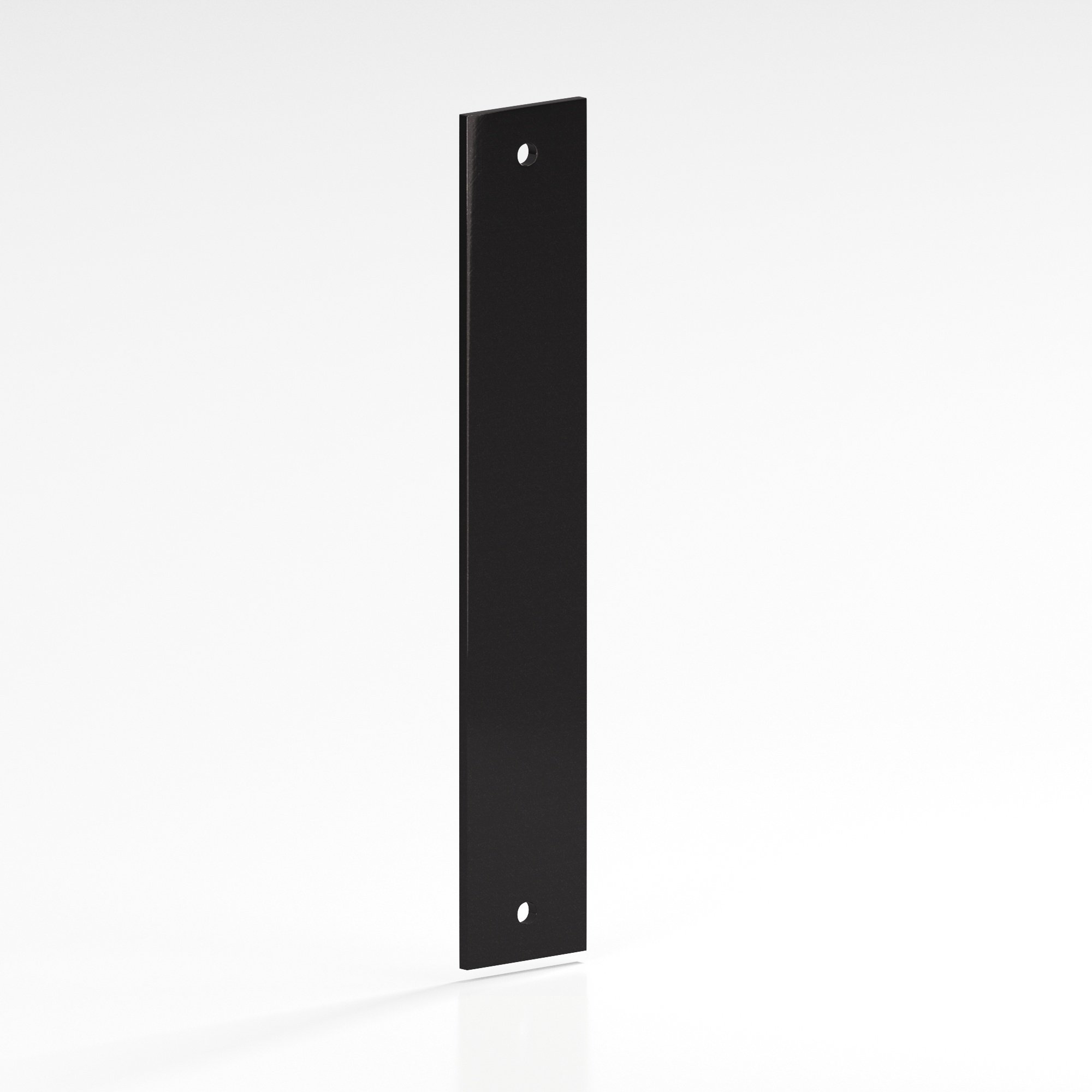

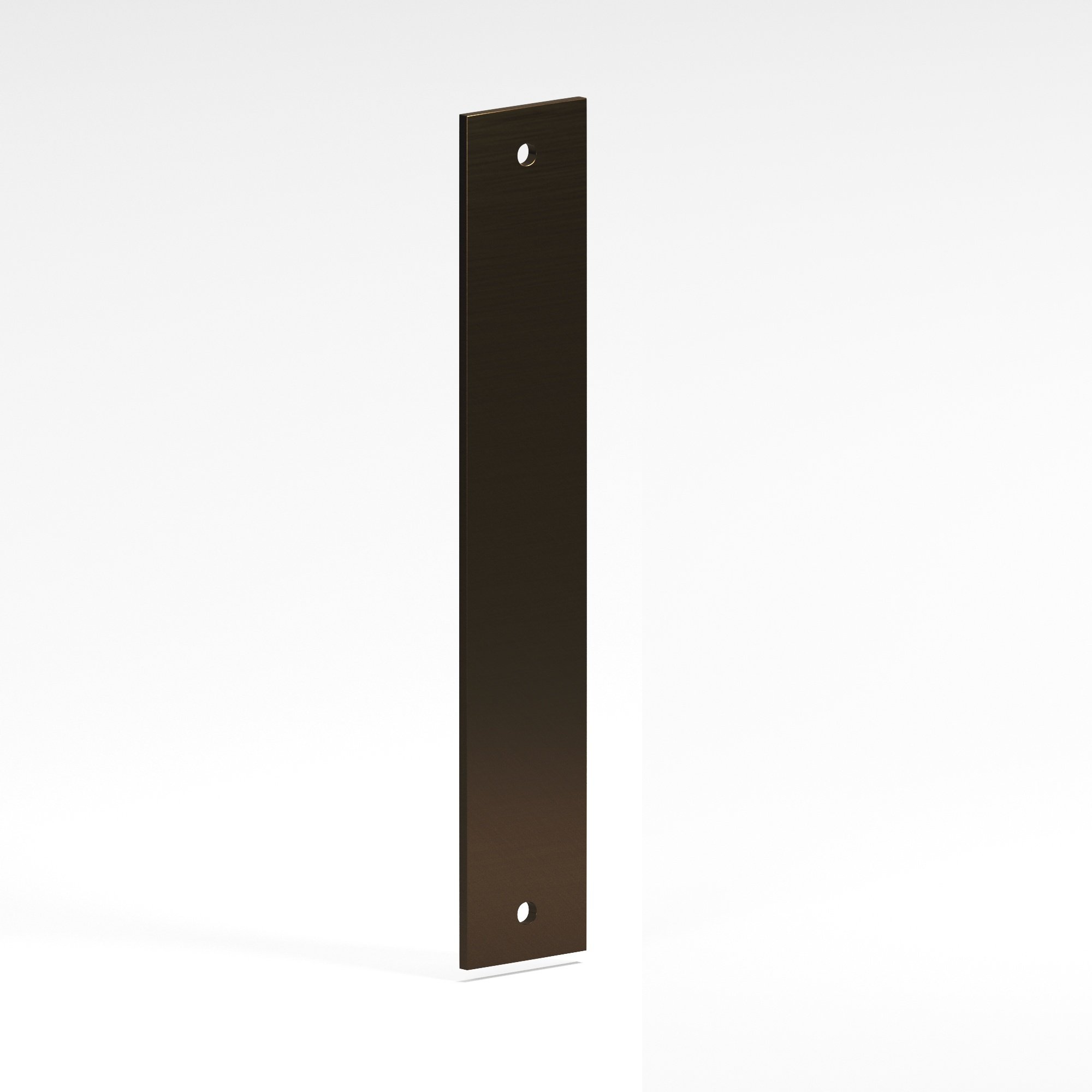

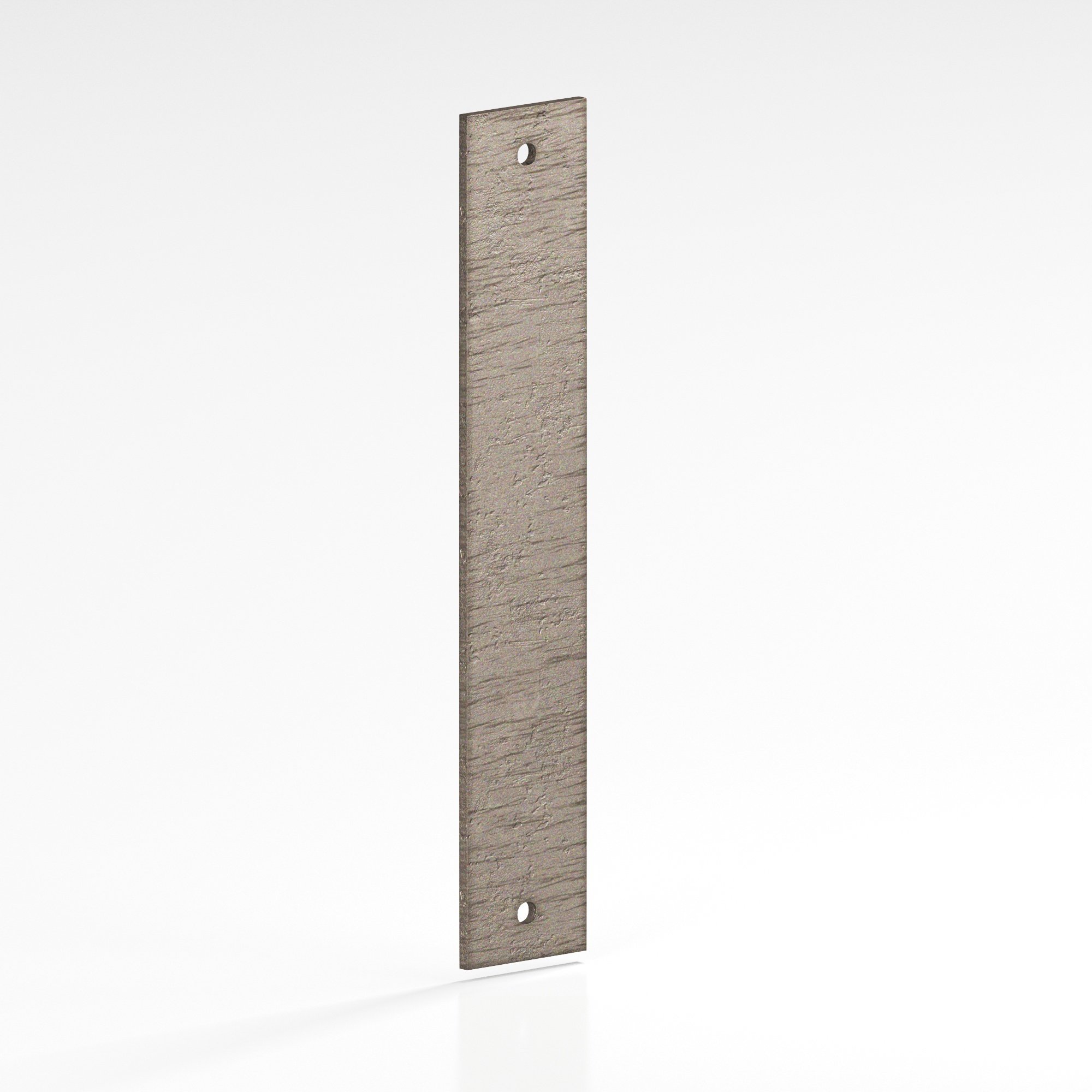

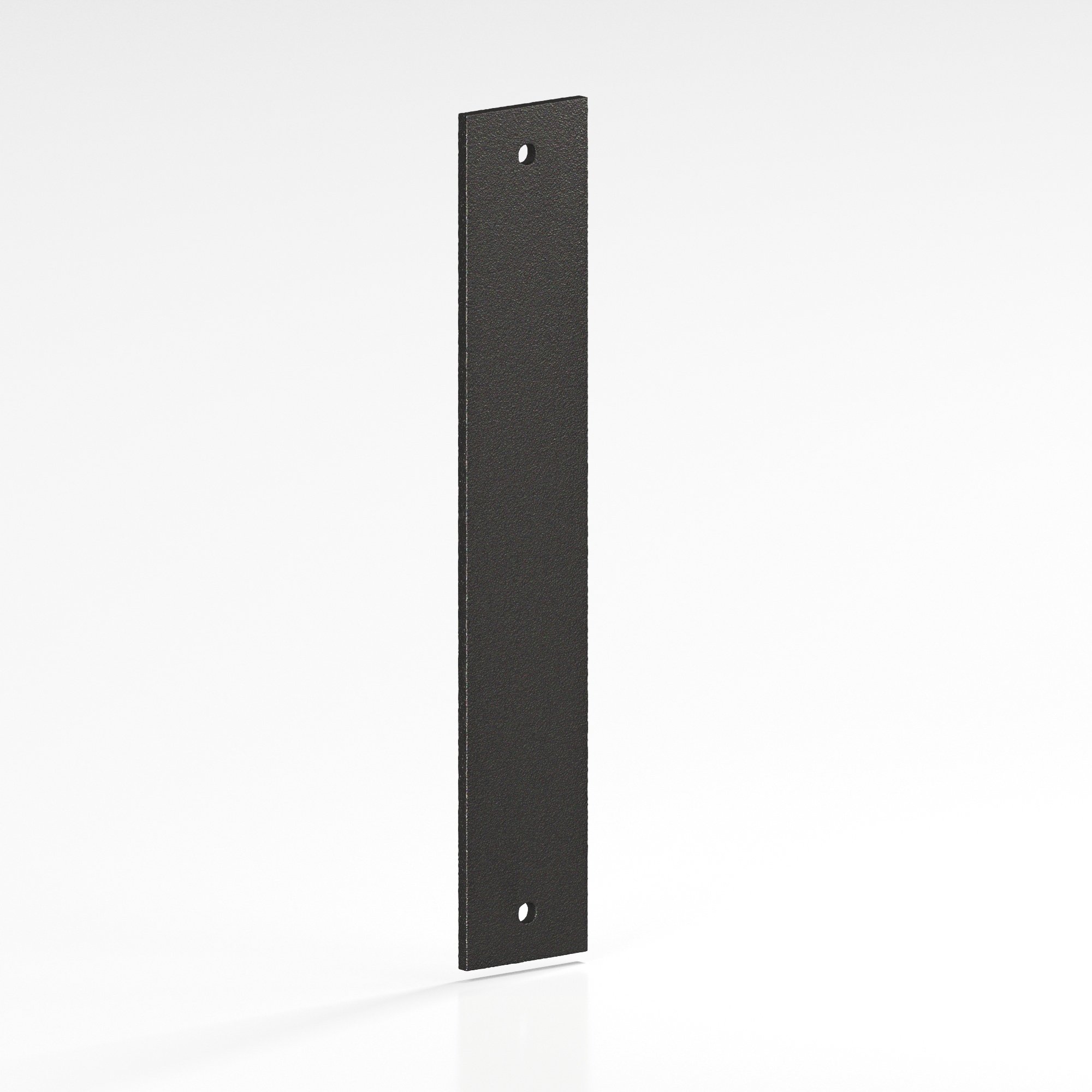

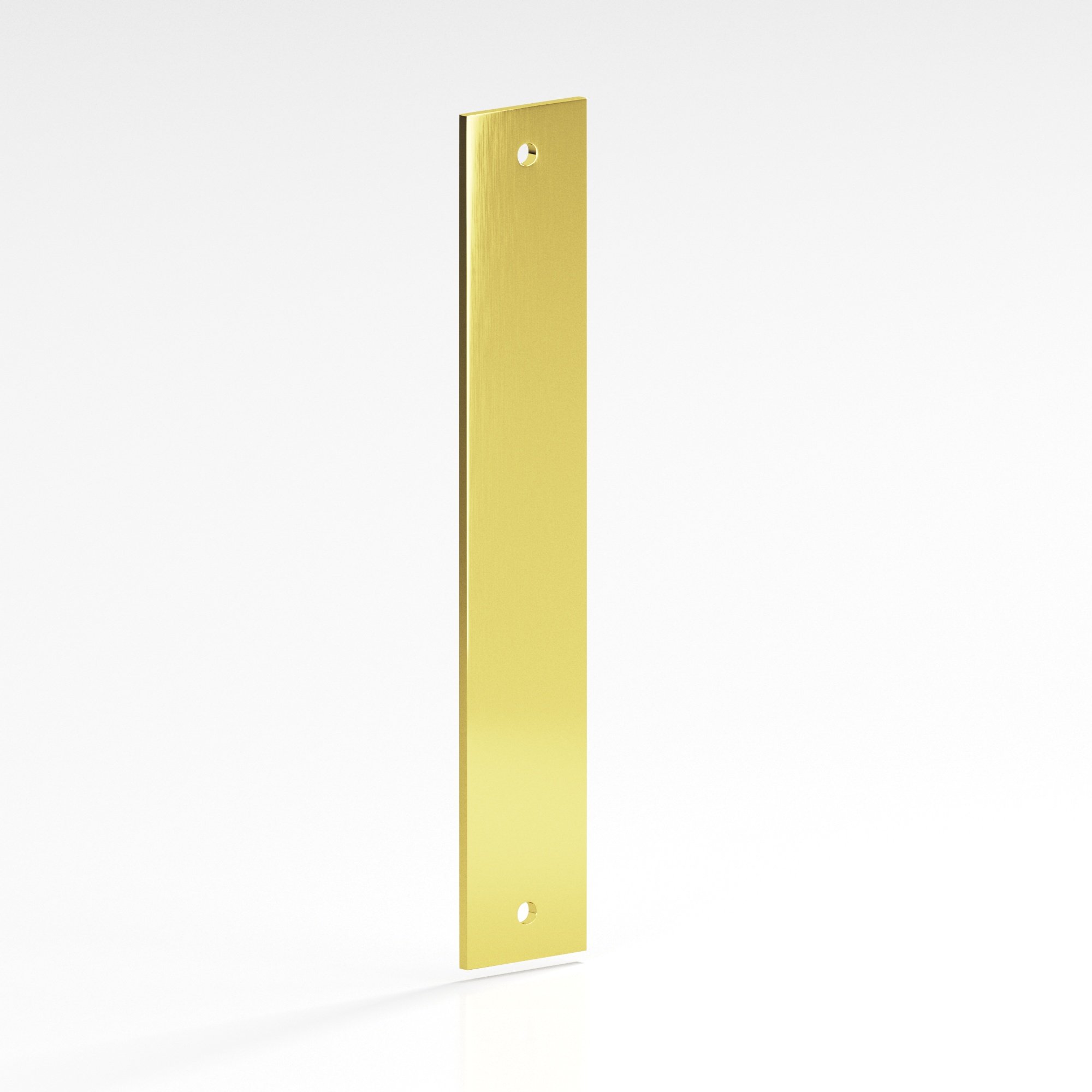

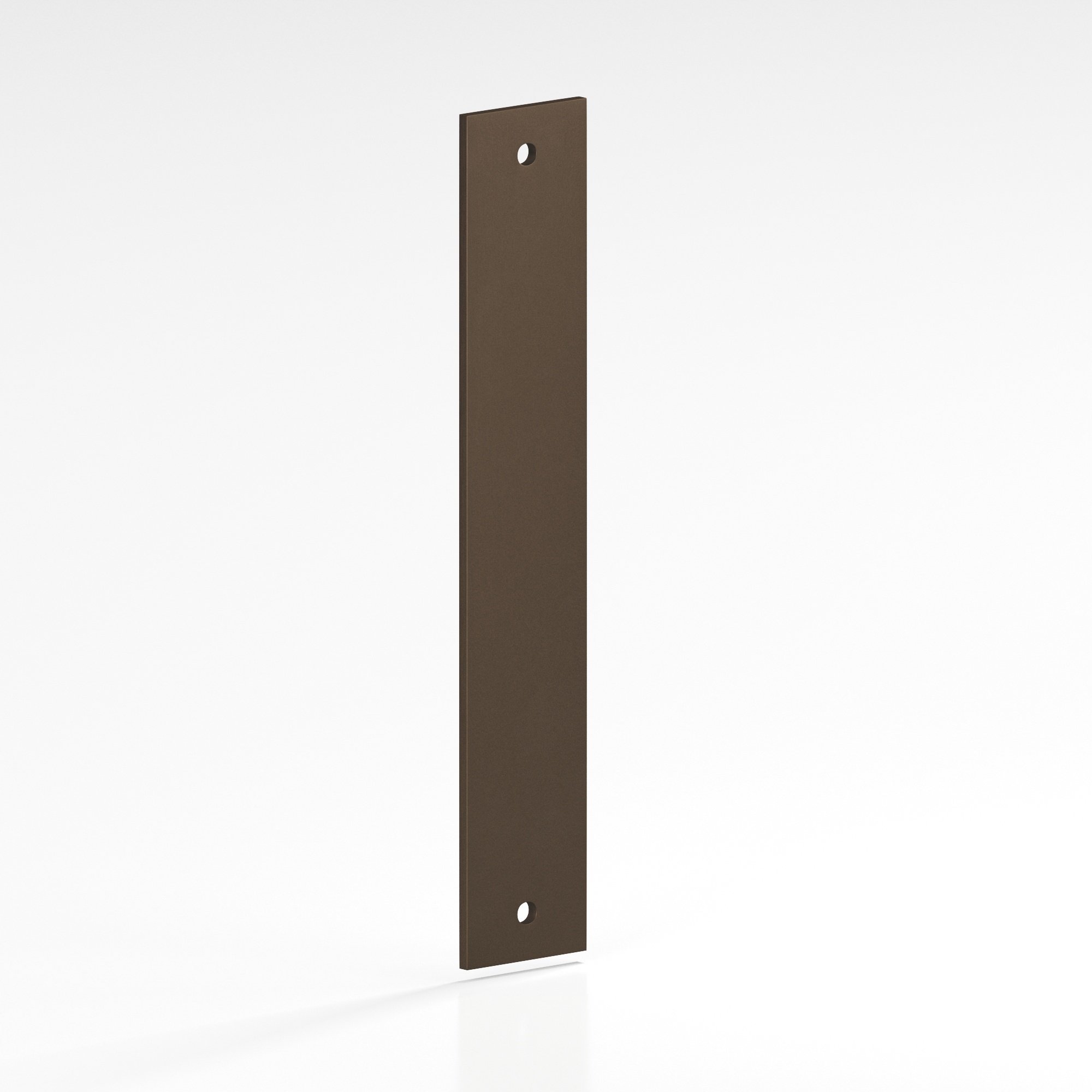

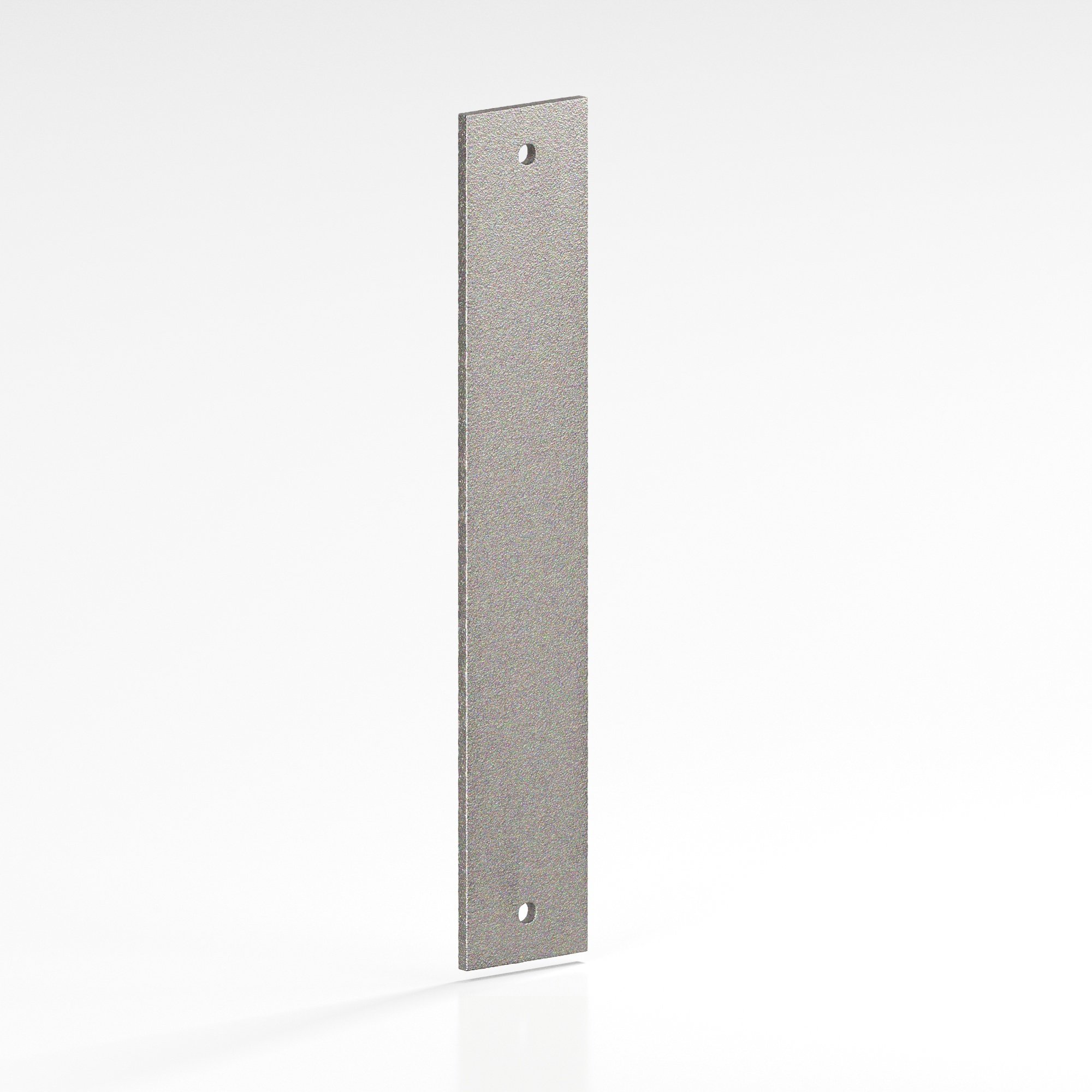

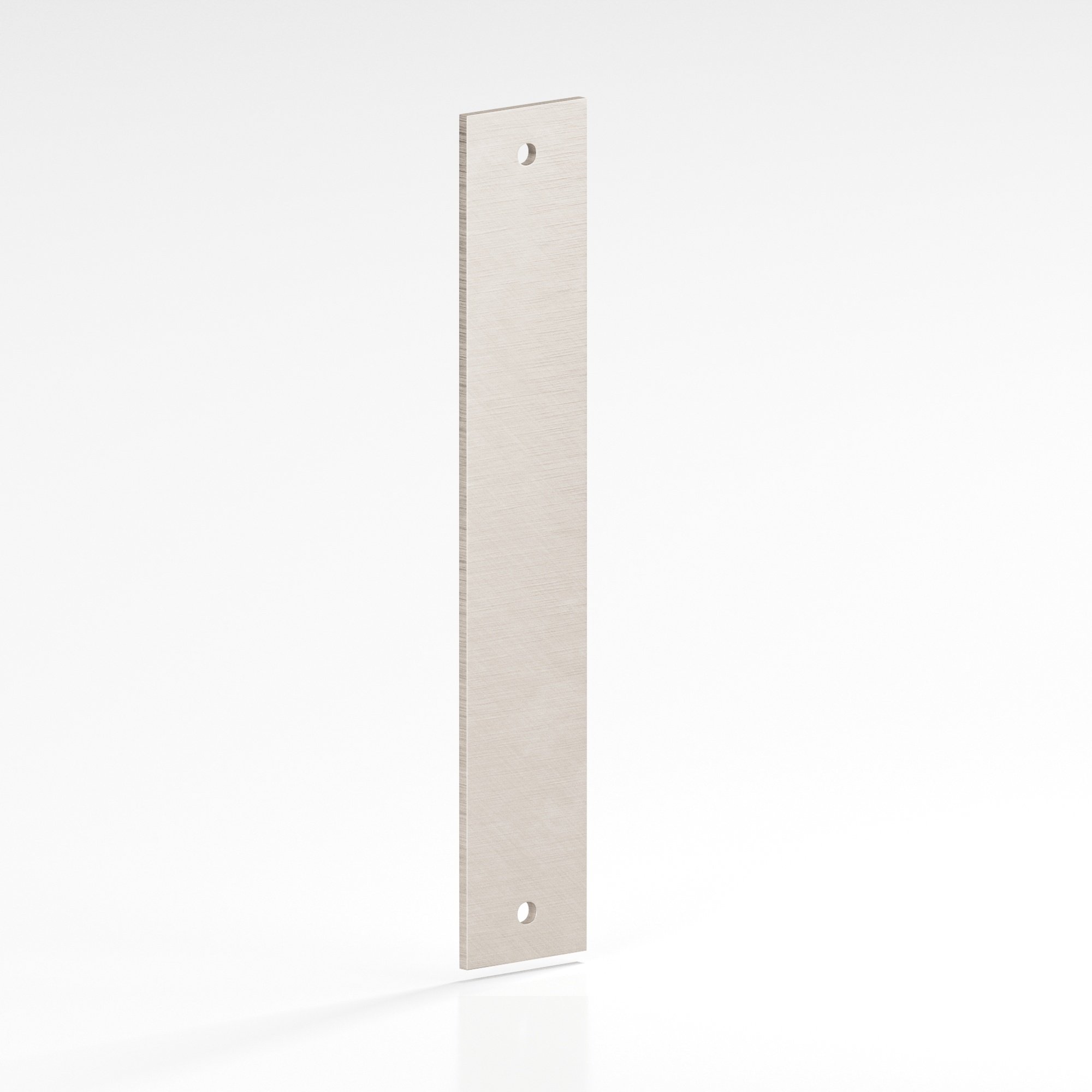

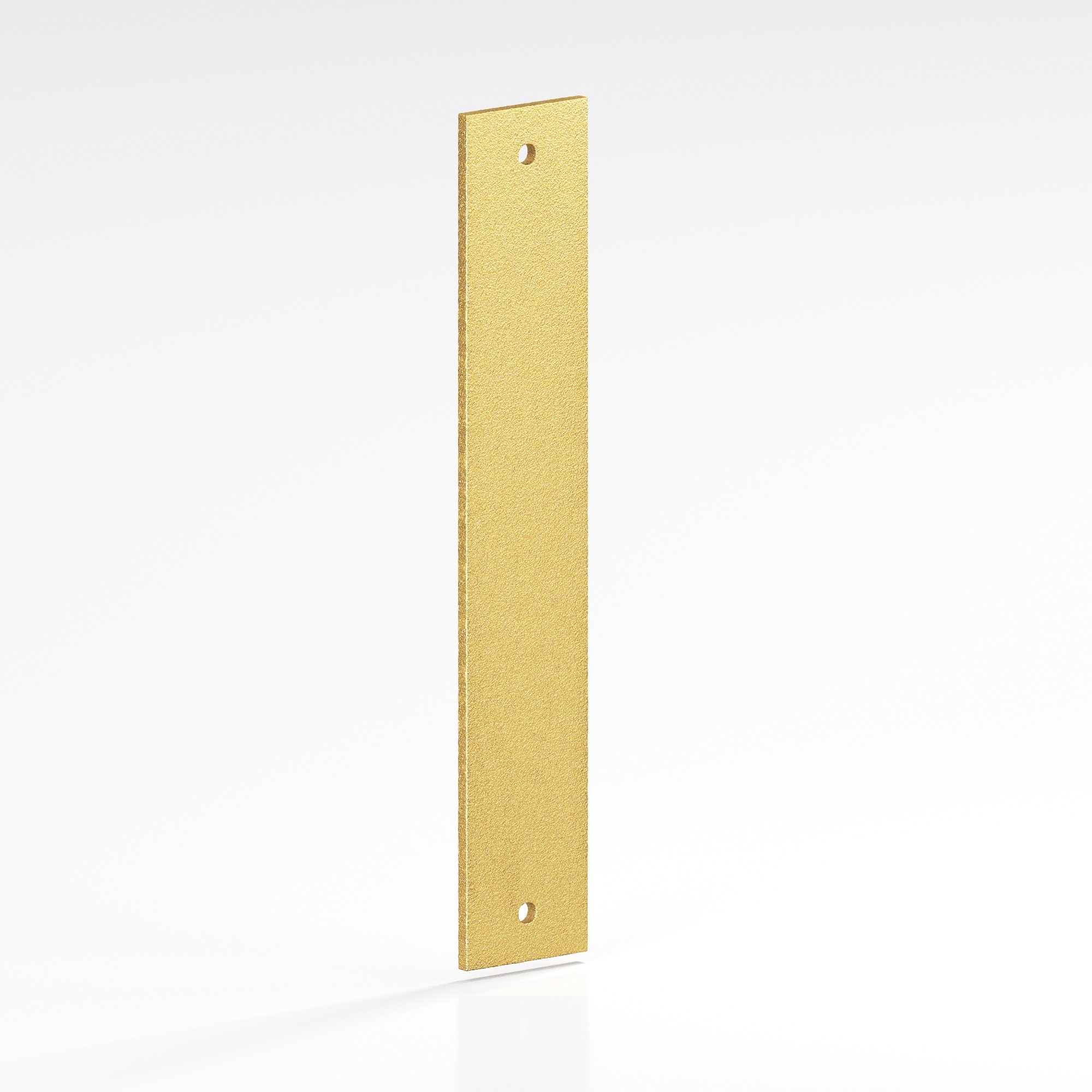

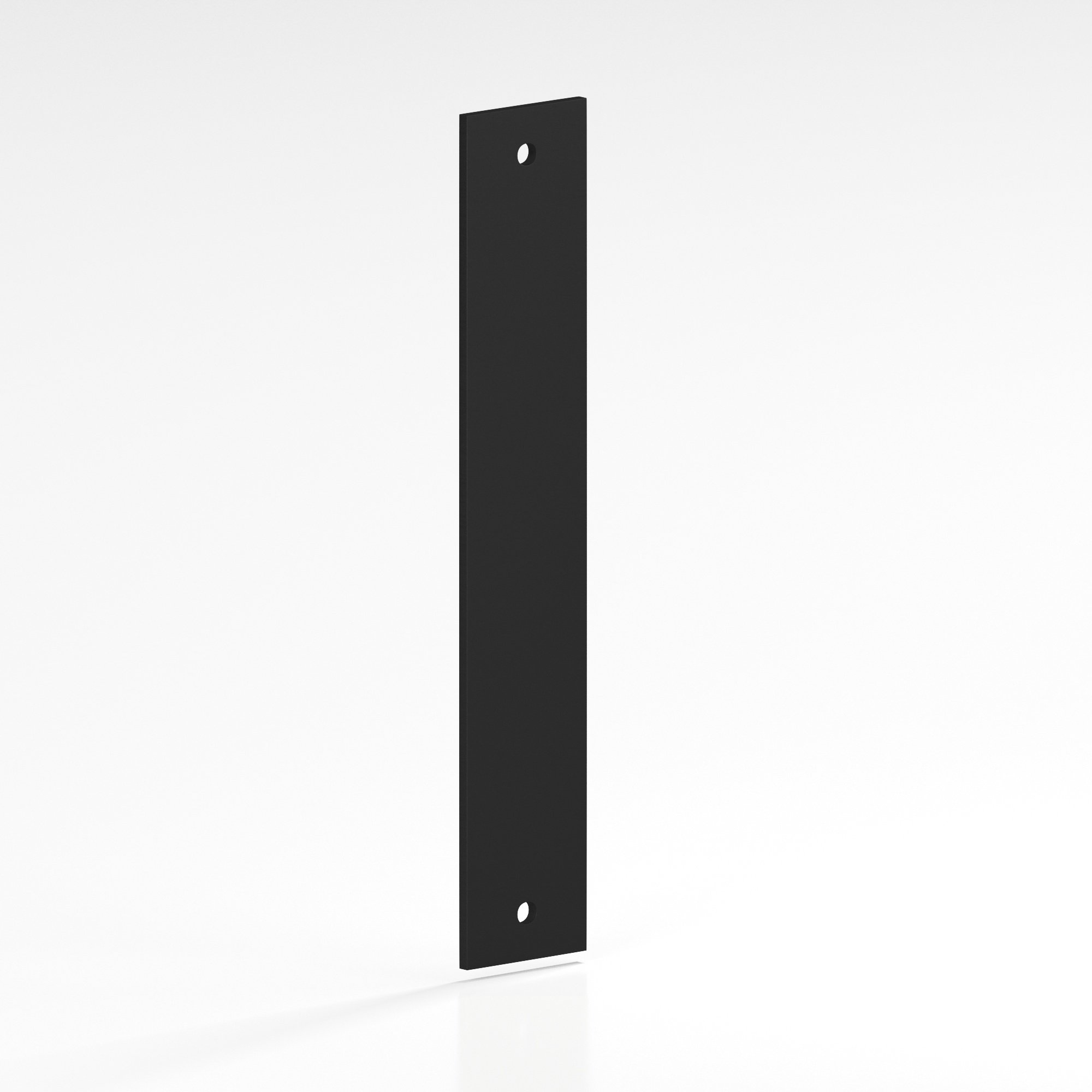

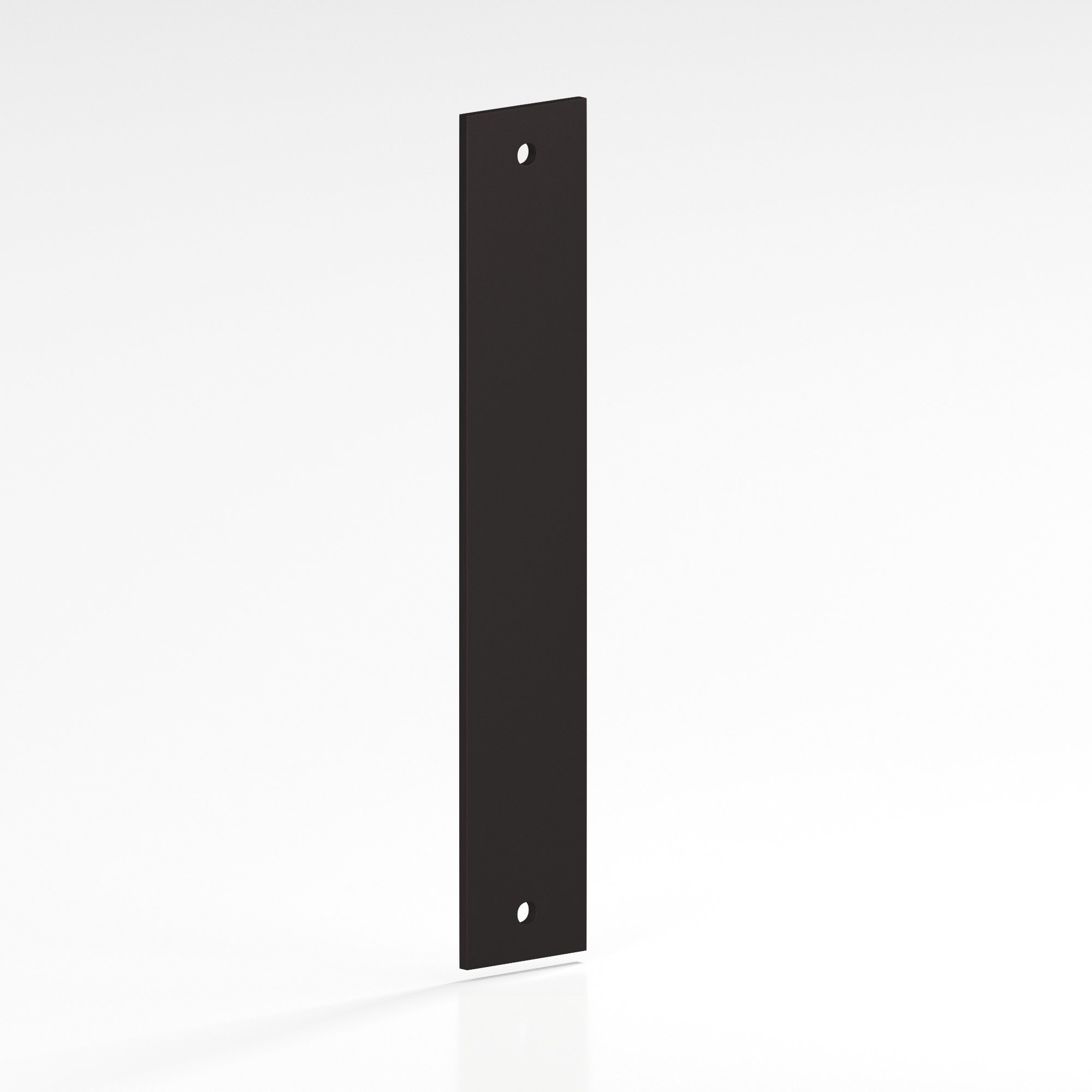

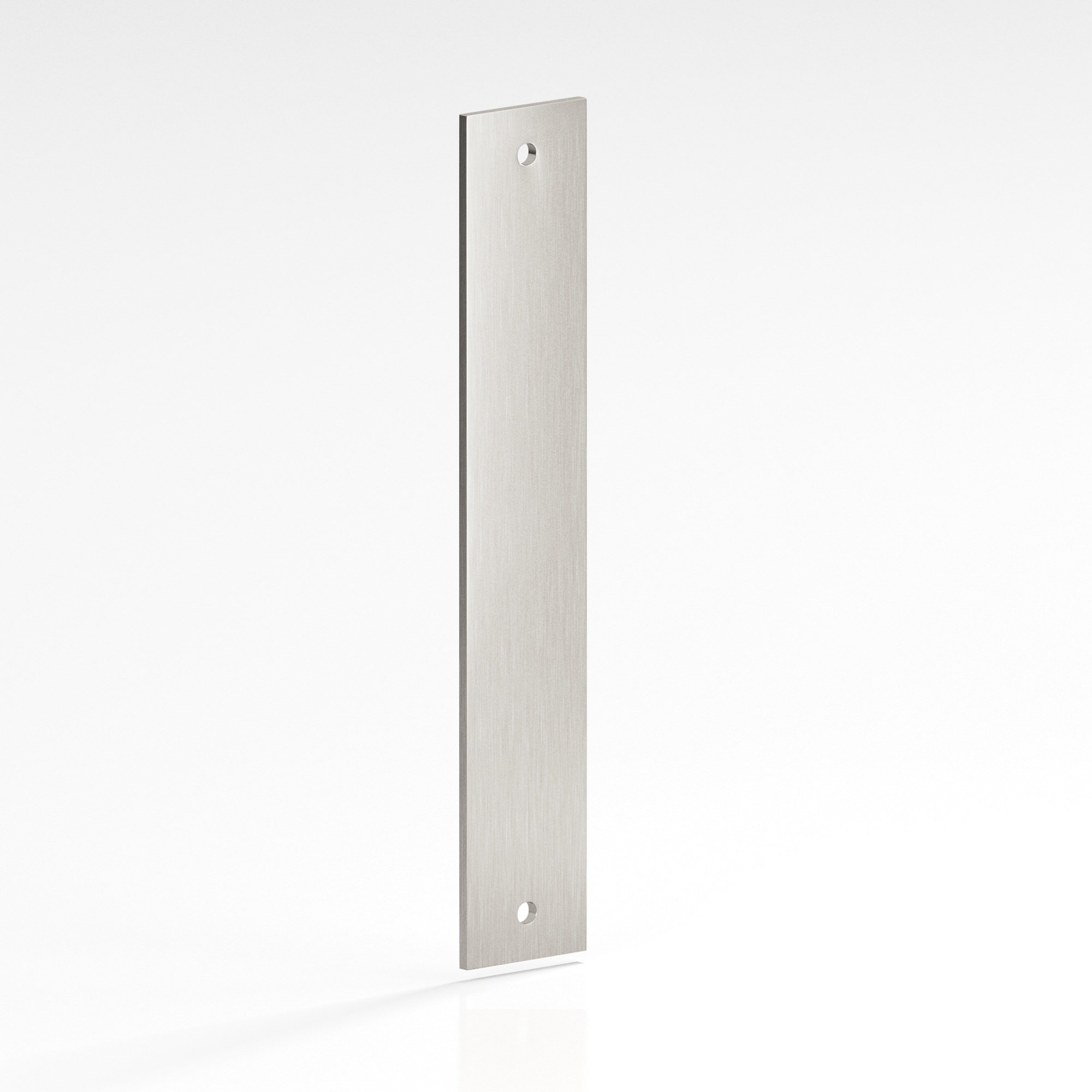

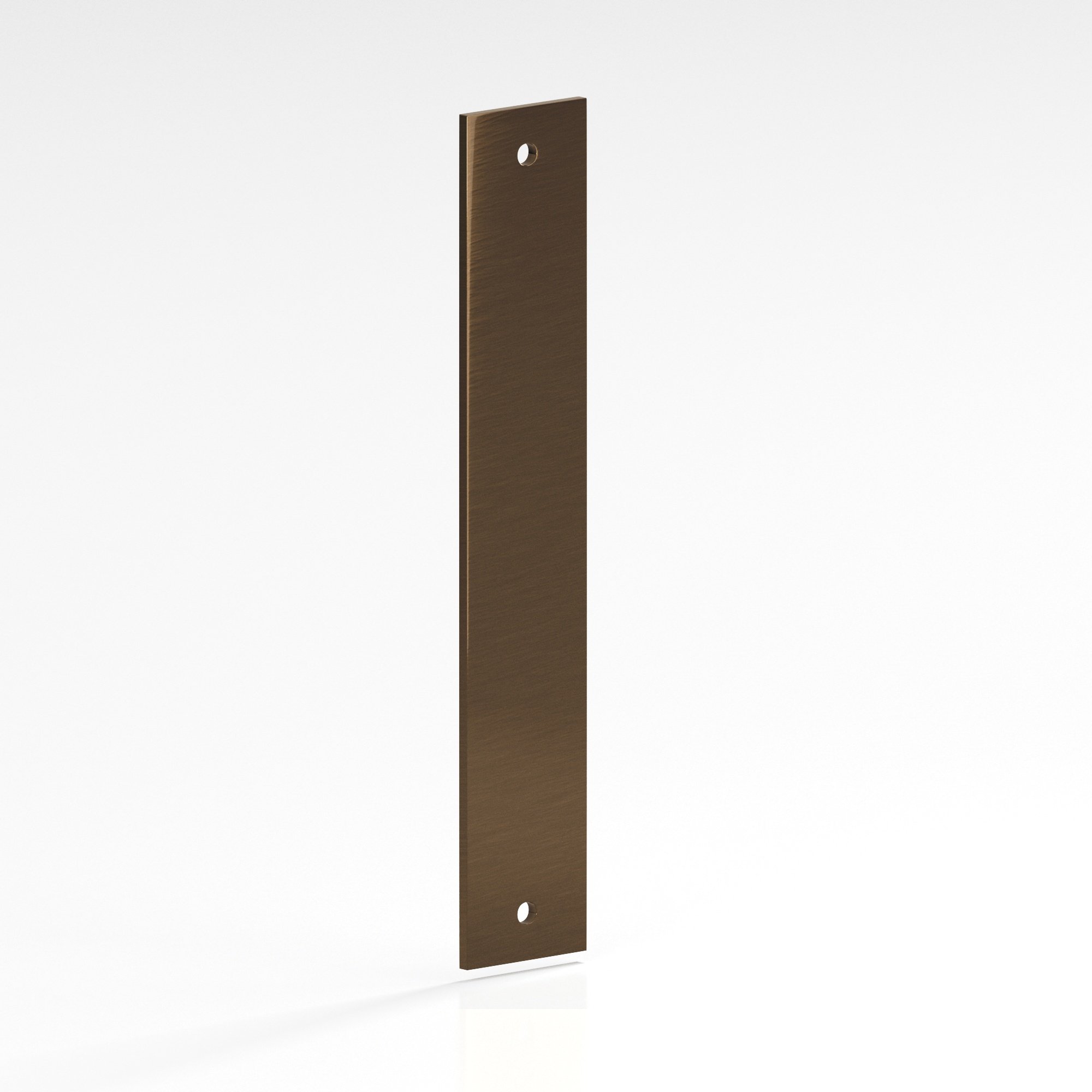

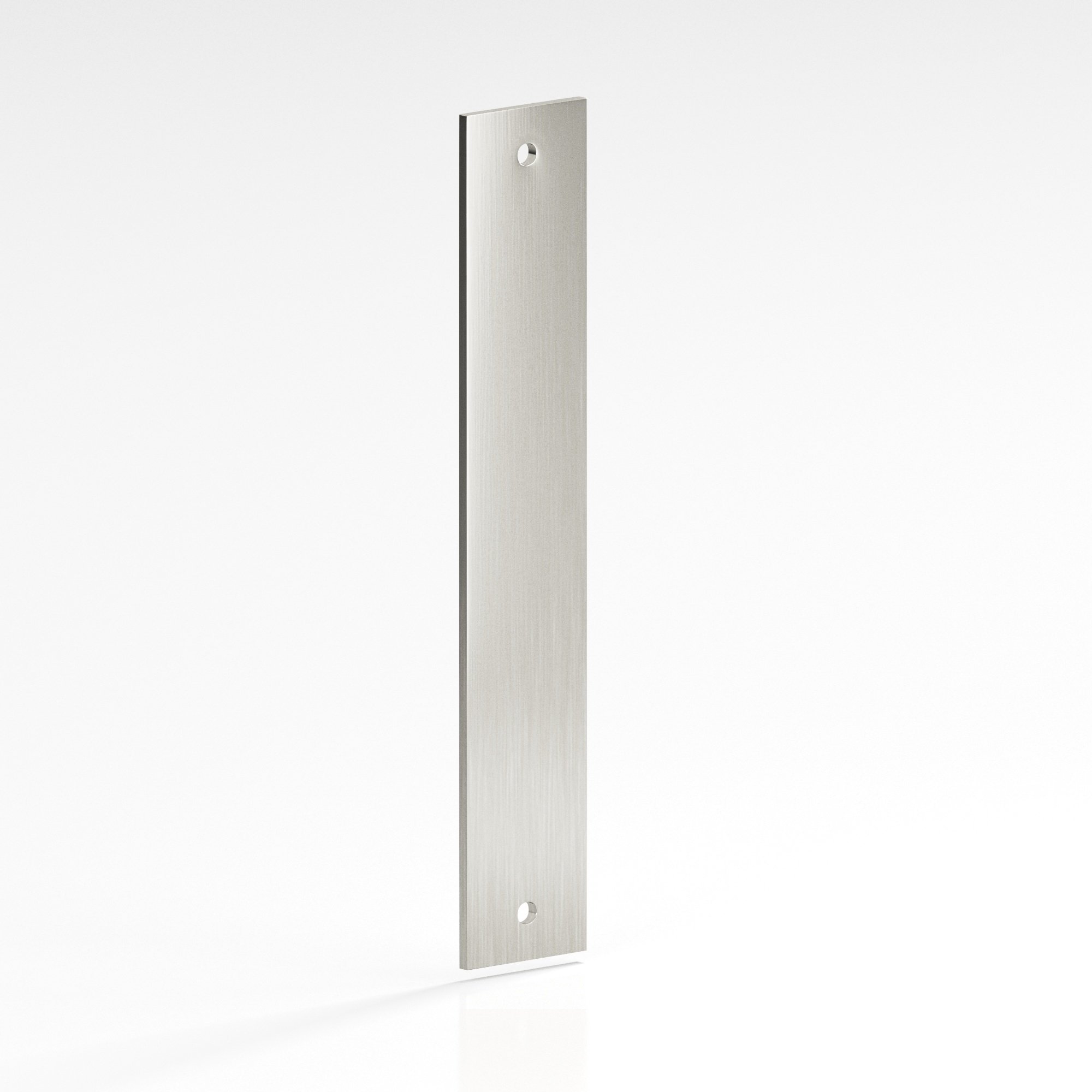

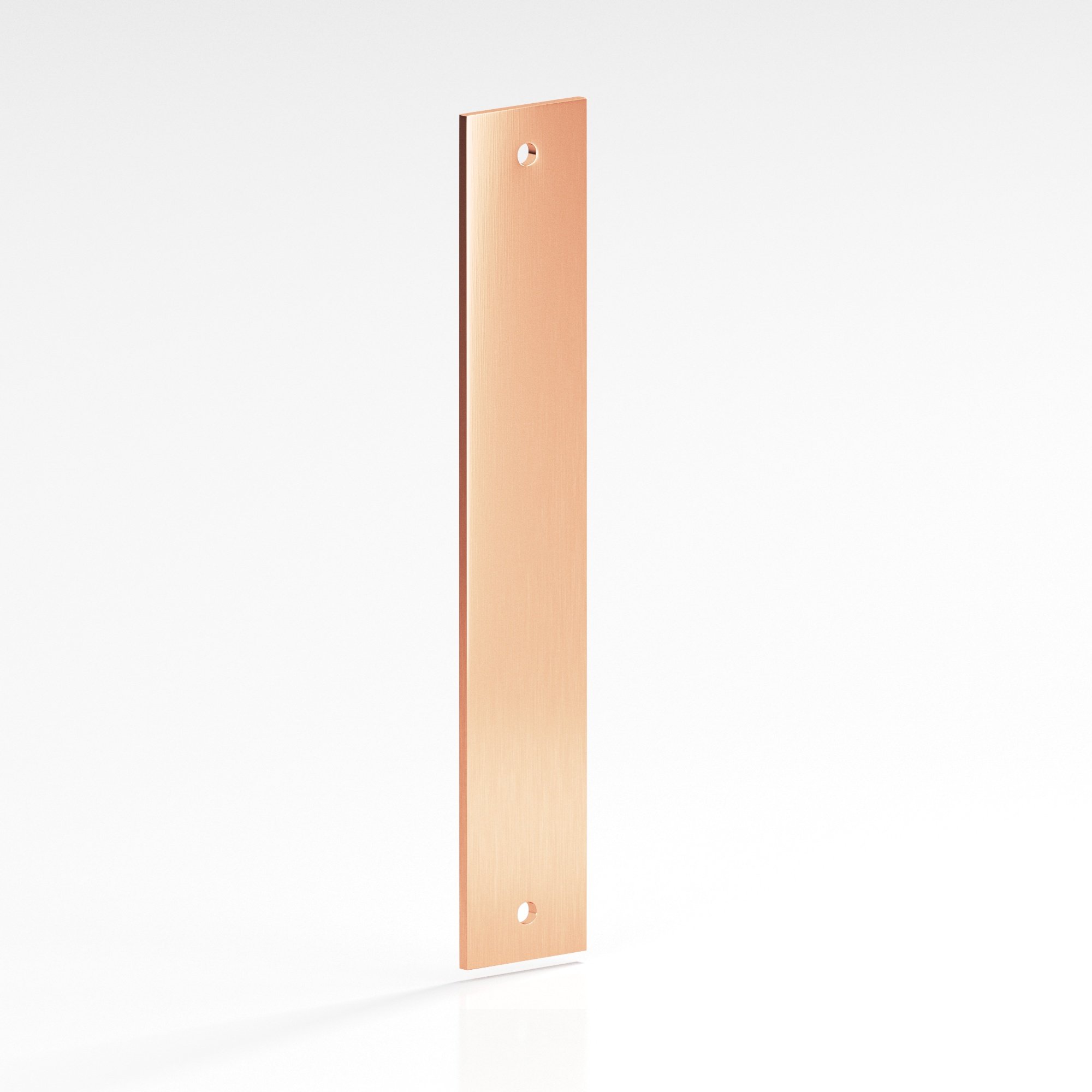

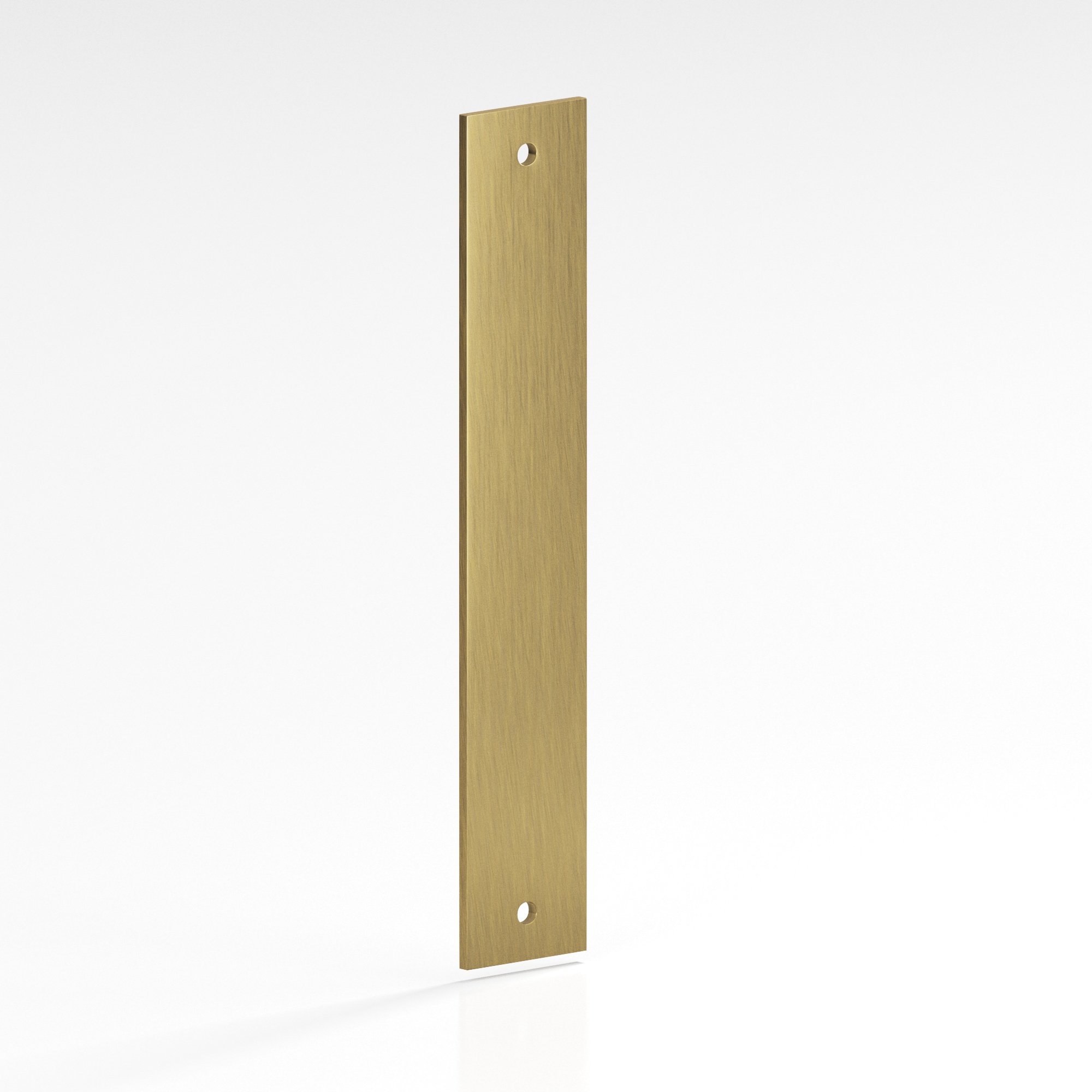

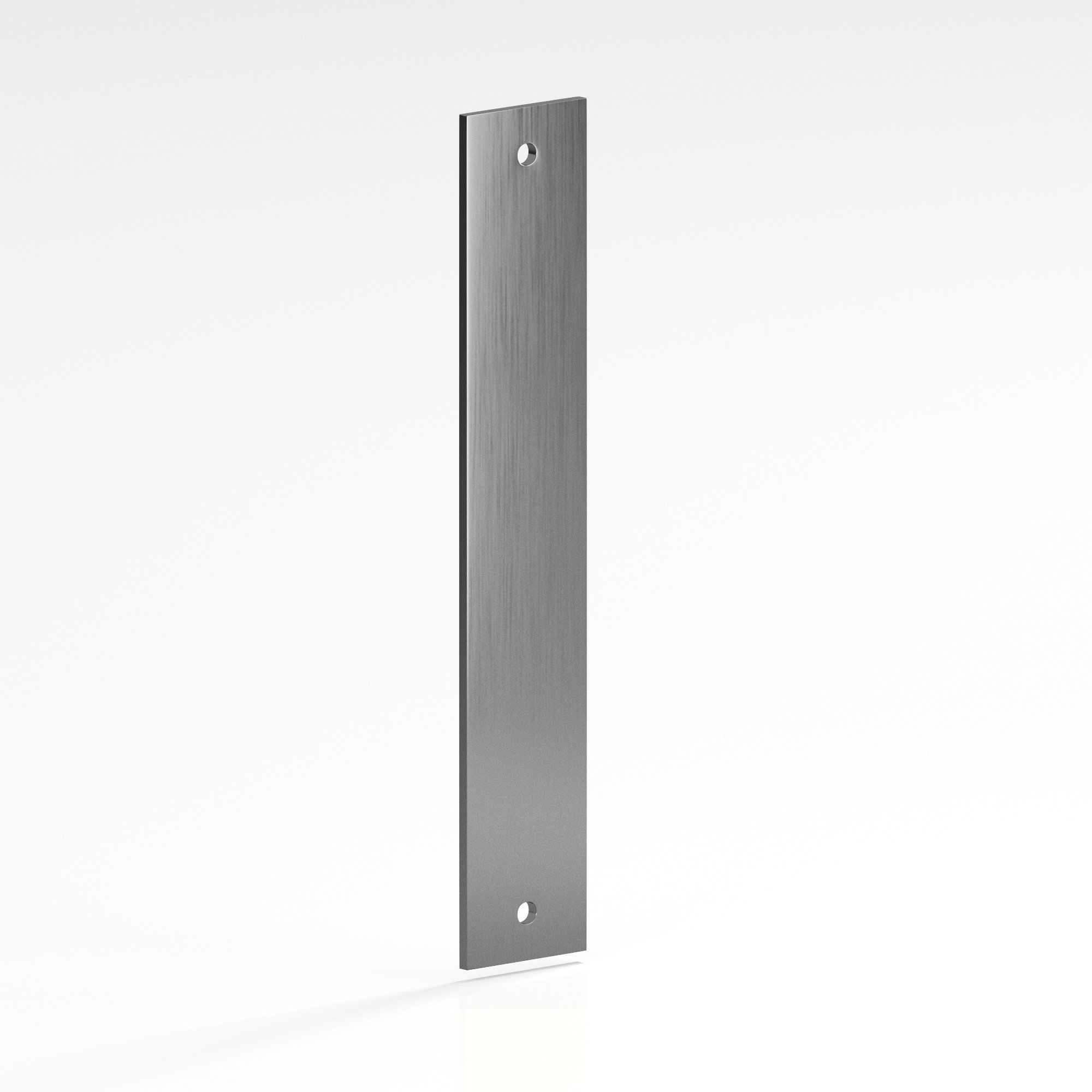

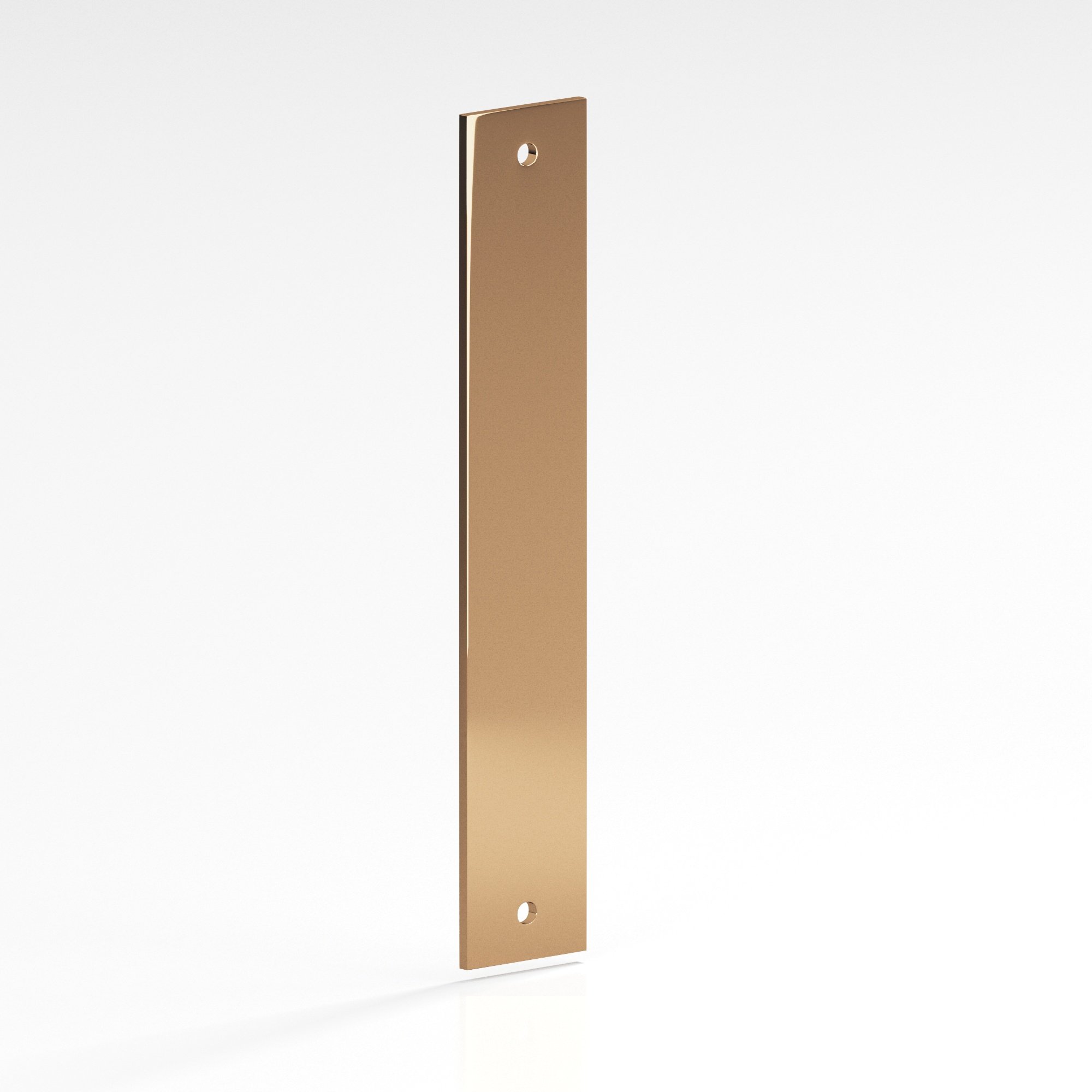

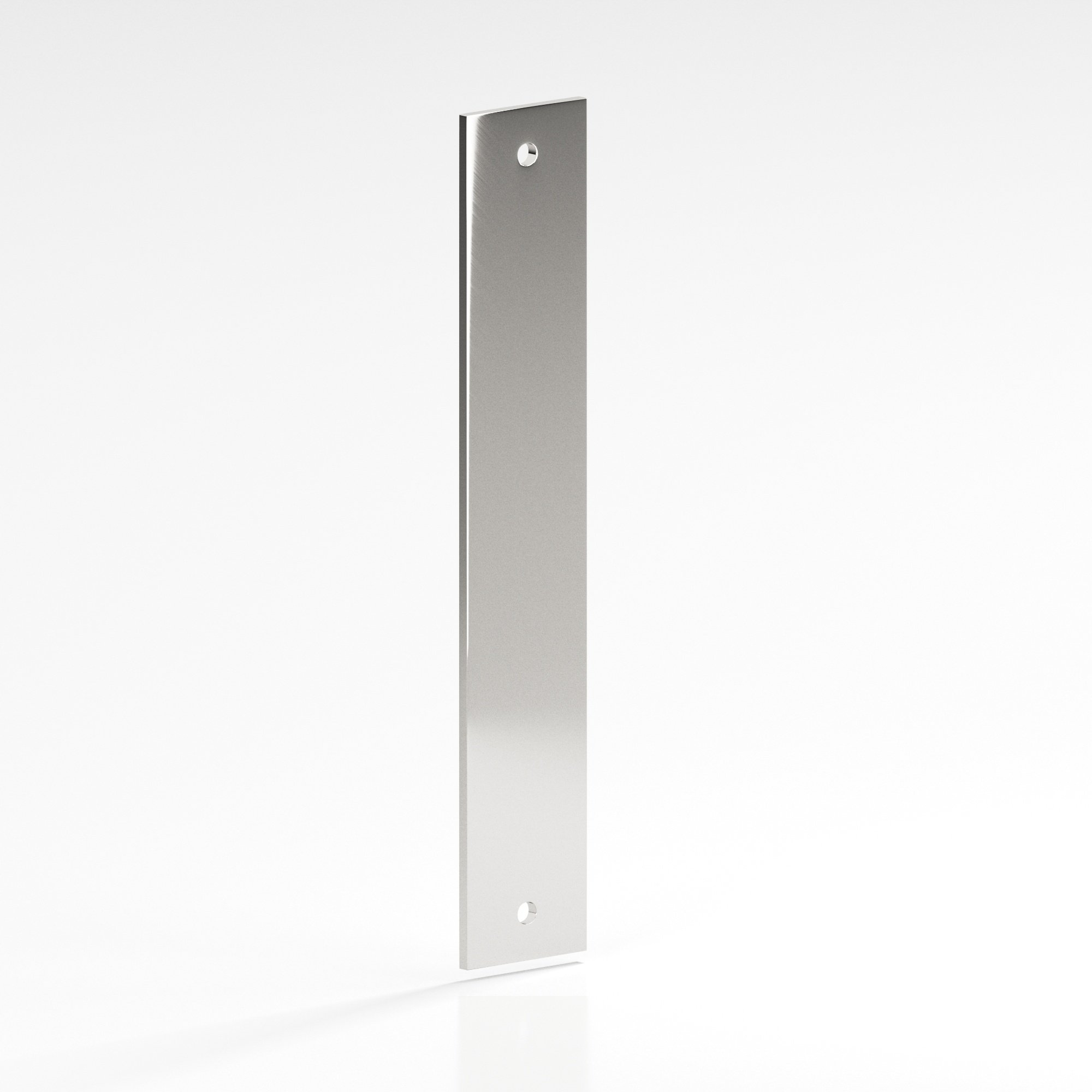

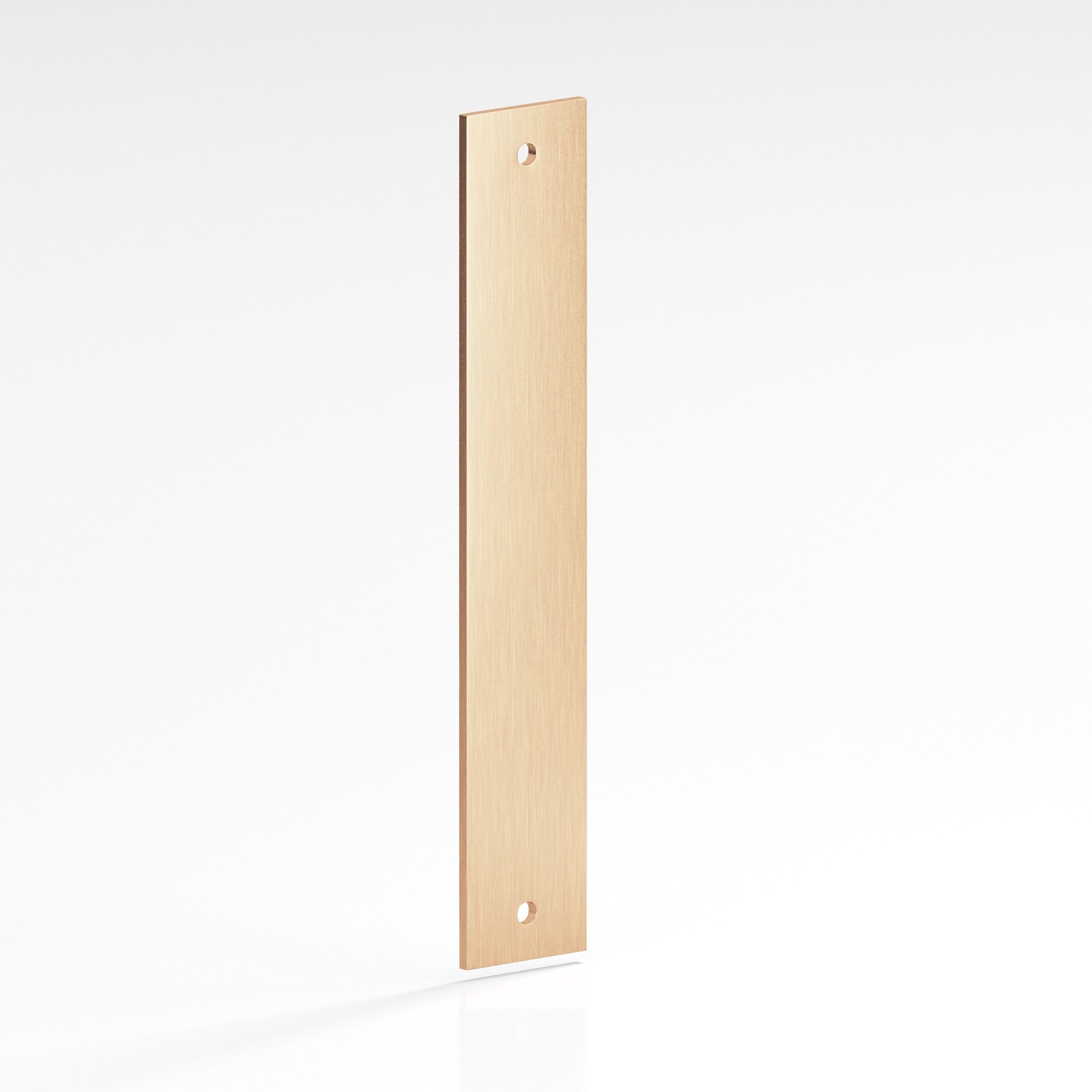

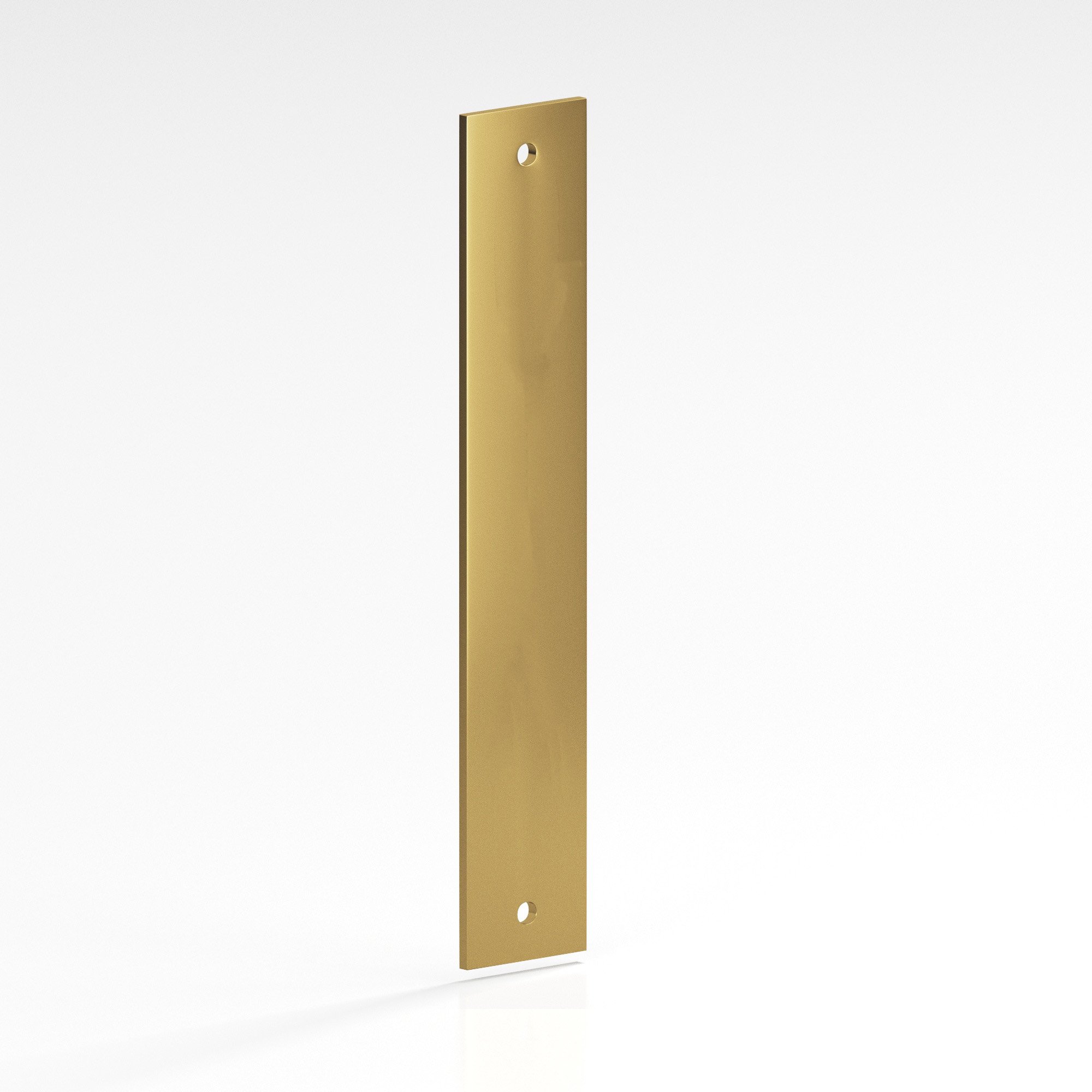

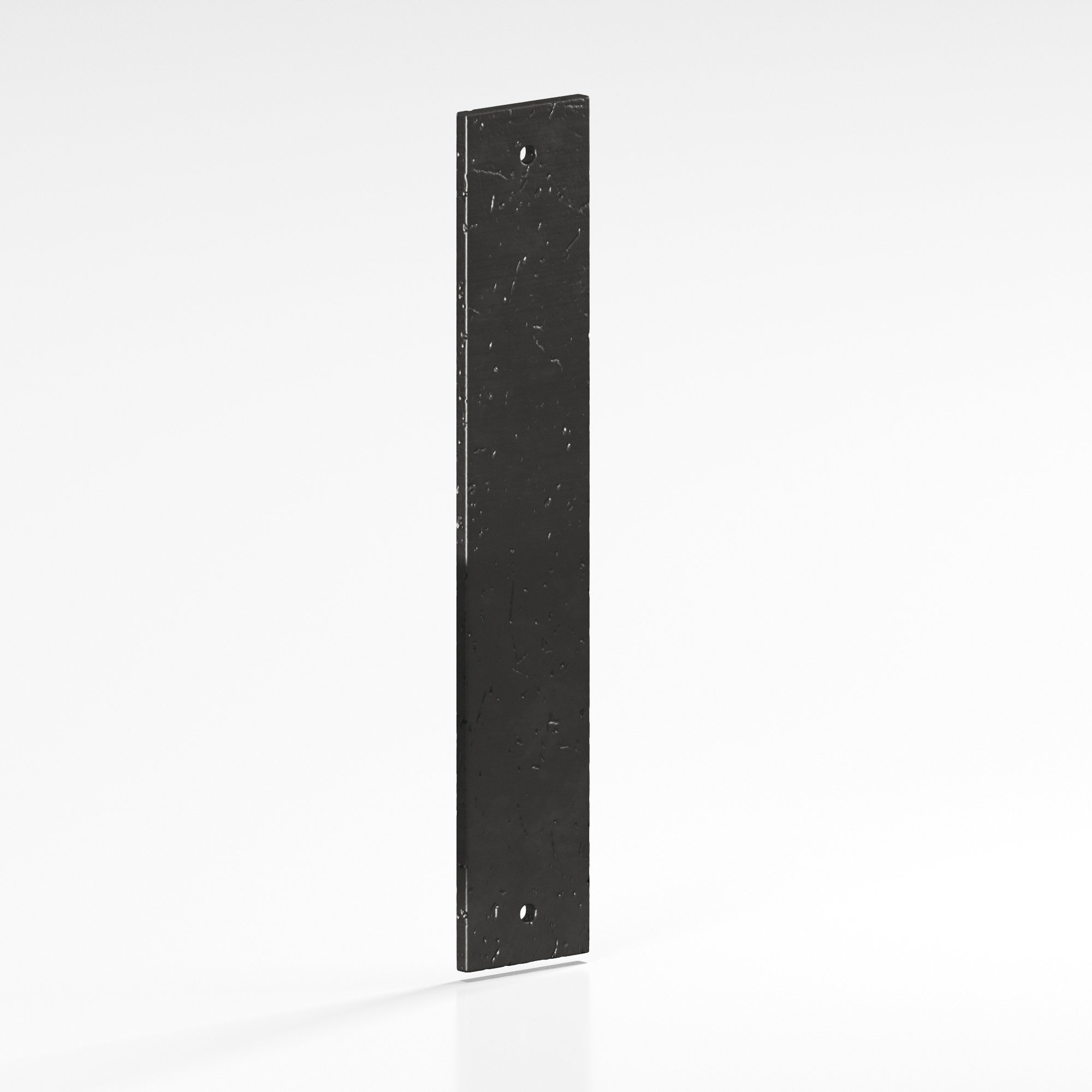

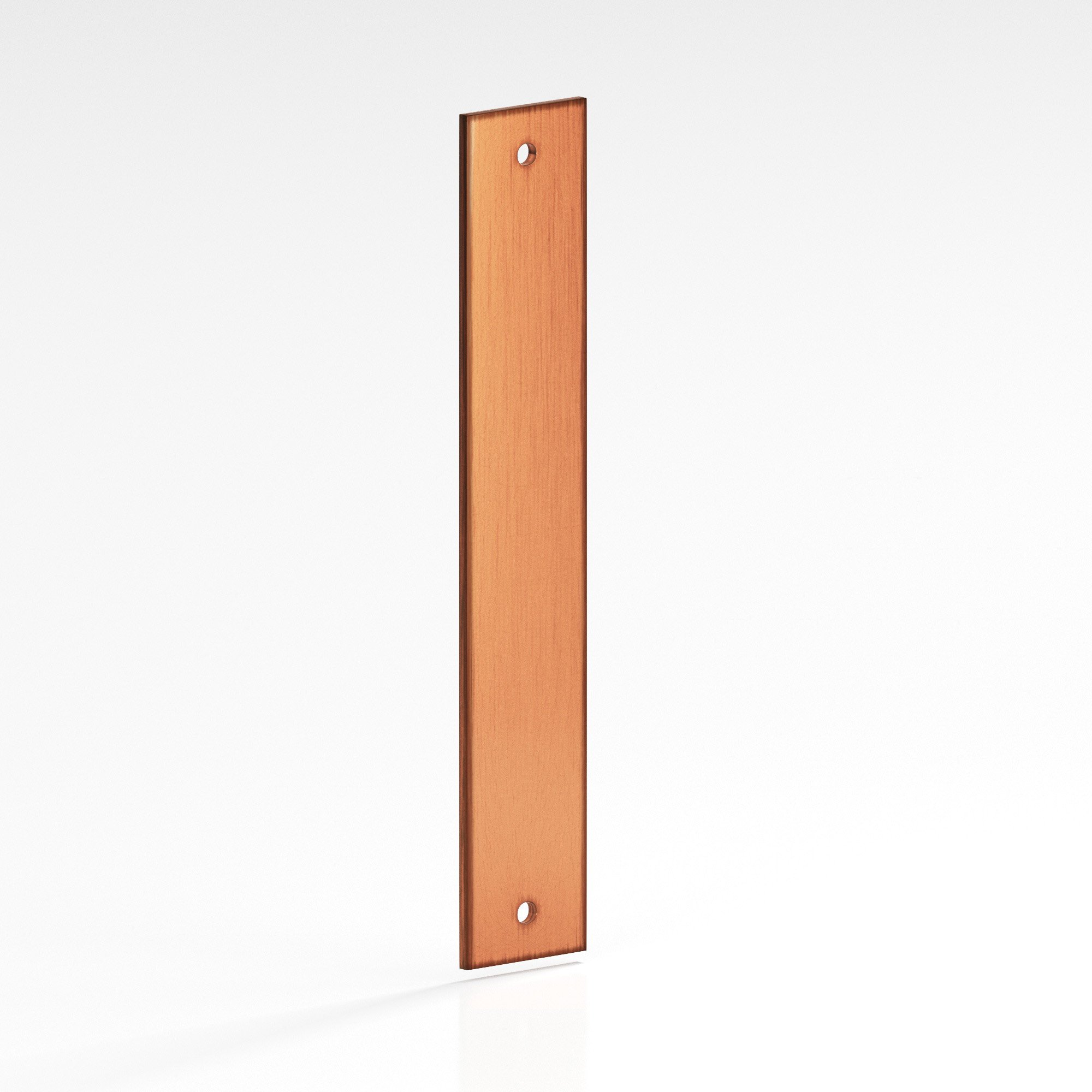

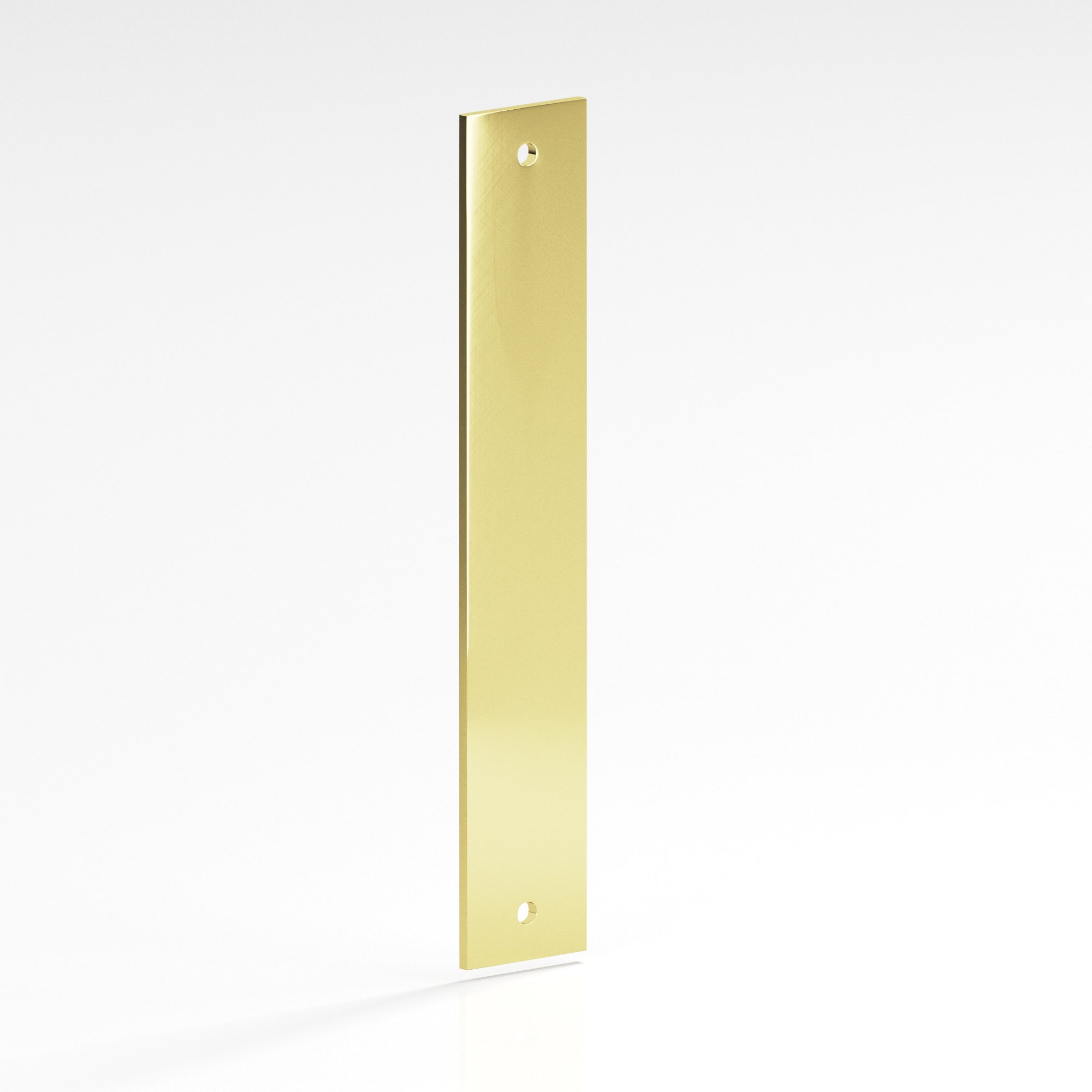

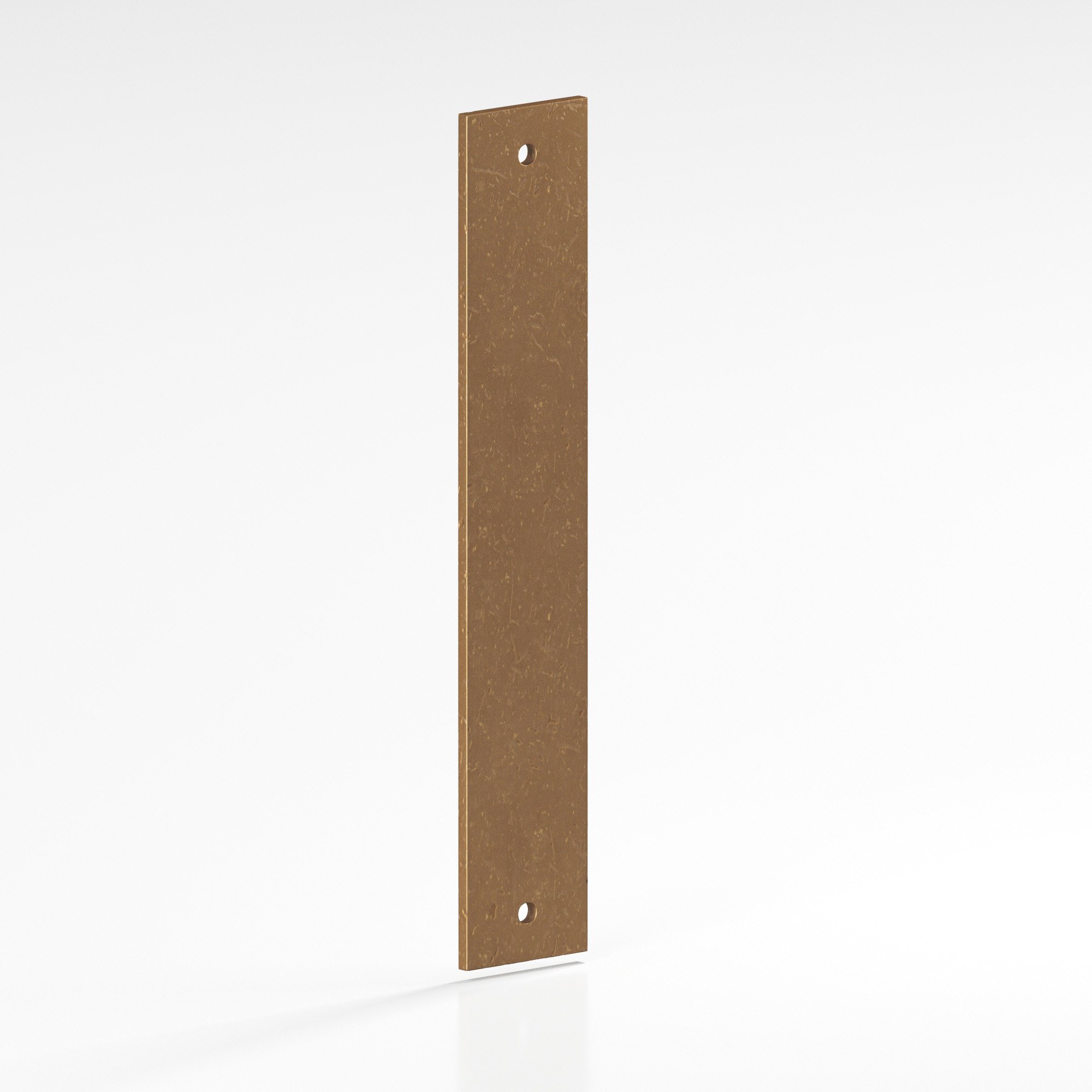

Please view the he 9745, 9843, 9844 and 9946 backplate series in all Colonial Bronze hand worked, lifetime finishes in the FINISHES GALLERY tab below.
AVAILABLE FINISHES
RELATED PRODUCTS
-
236, 800 & 836 Pull Series
- Cabinet Pulls, Appliance Pulls, Shower Door Pulls, Door Pulls
- Select options This product has multiple variants. The options may be chosen on the product page
SPECIFICATION & INSTALLATION INFORMATION
Download:
COLONIAL BRONZE FINISHES
Our products are available in every finish we offer!
*Finishes may vary from images on your screen
